Regular price$3,999.98
/
  • Pick up in Vancouver only
  • Exclusive Nitro discount available

DESCRIPTION

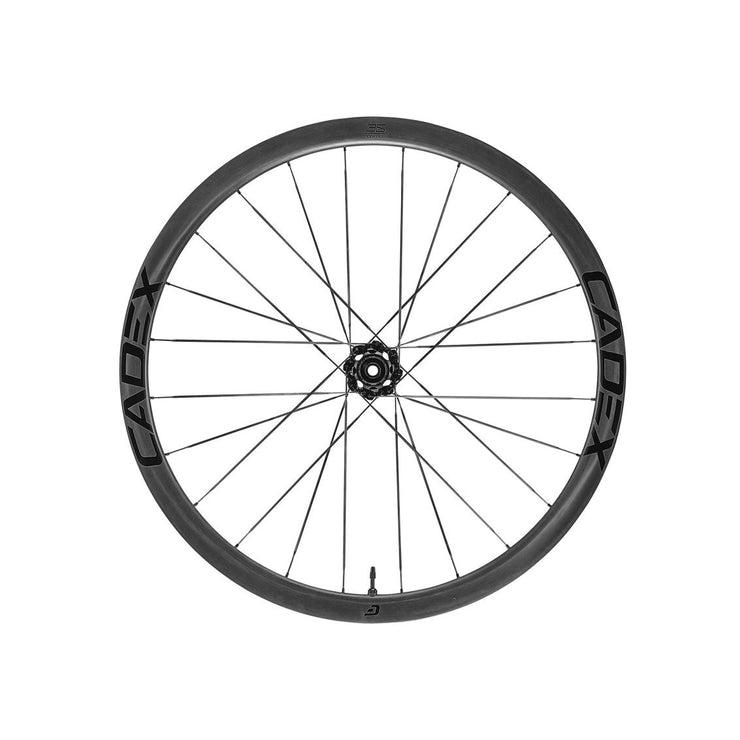

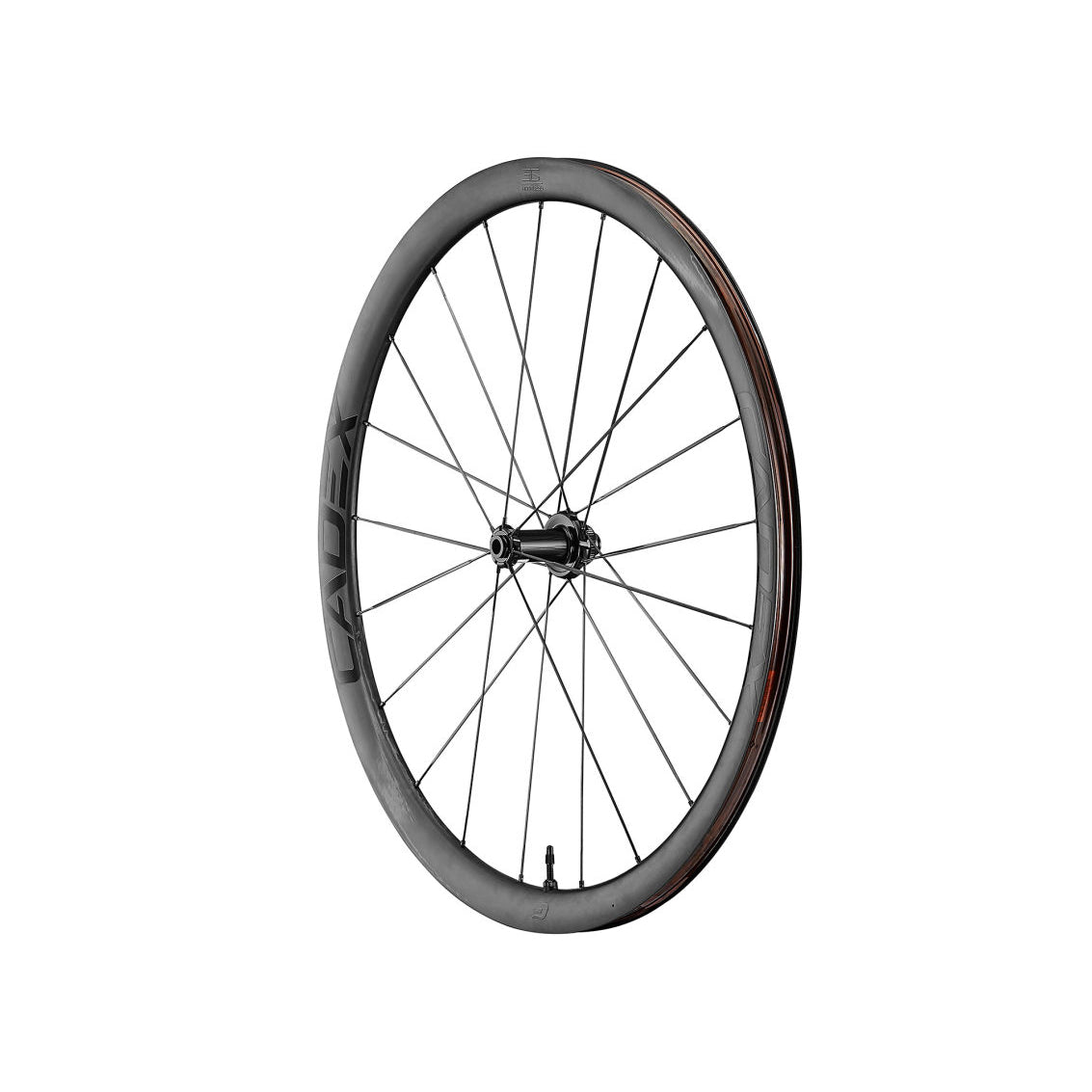

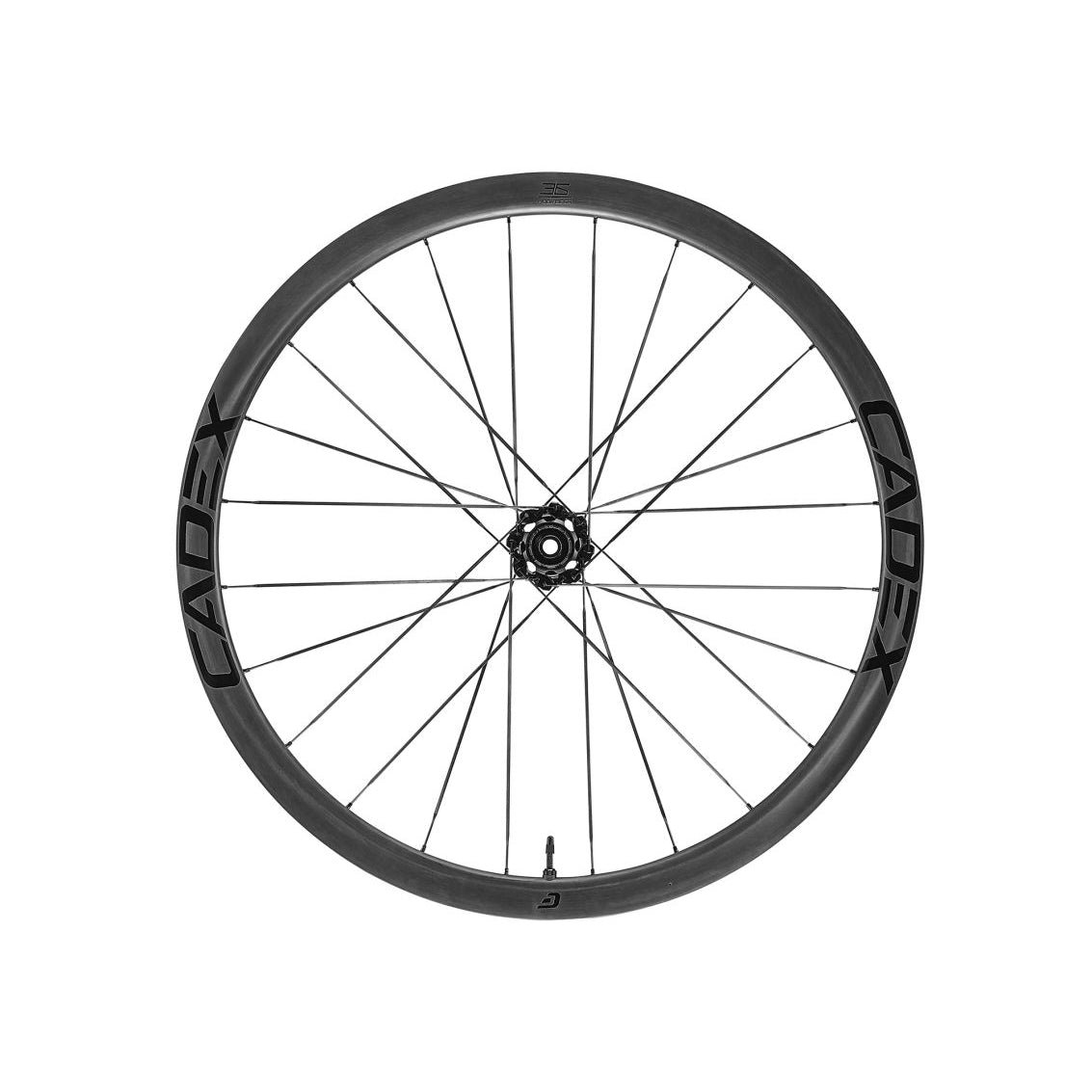

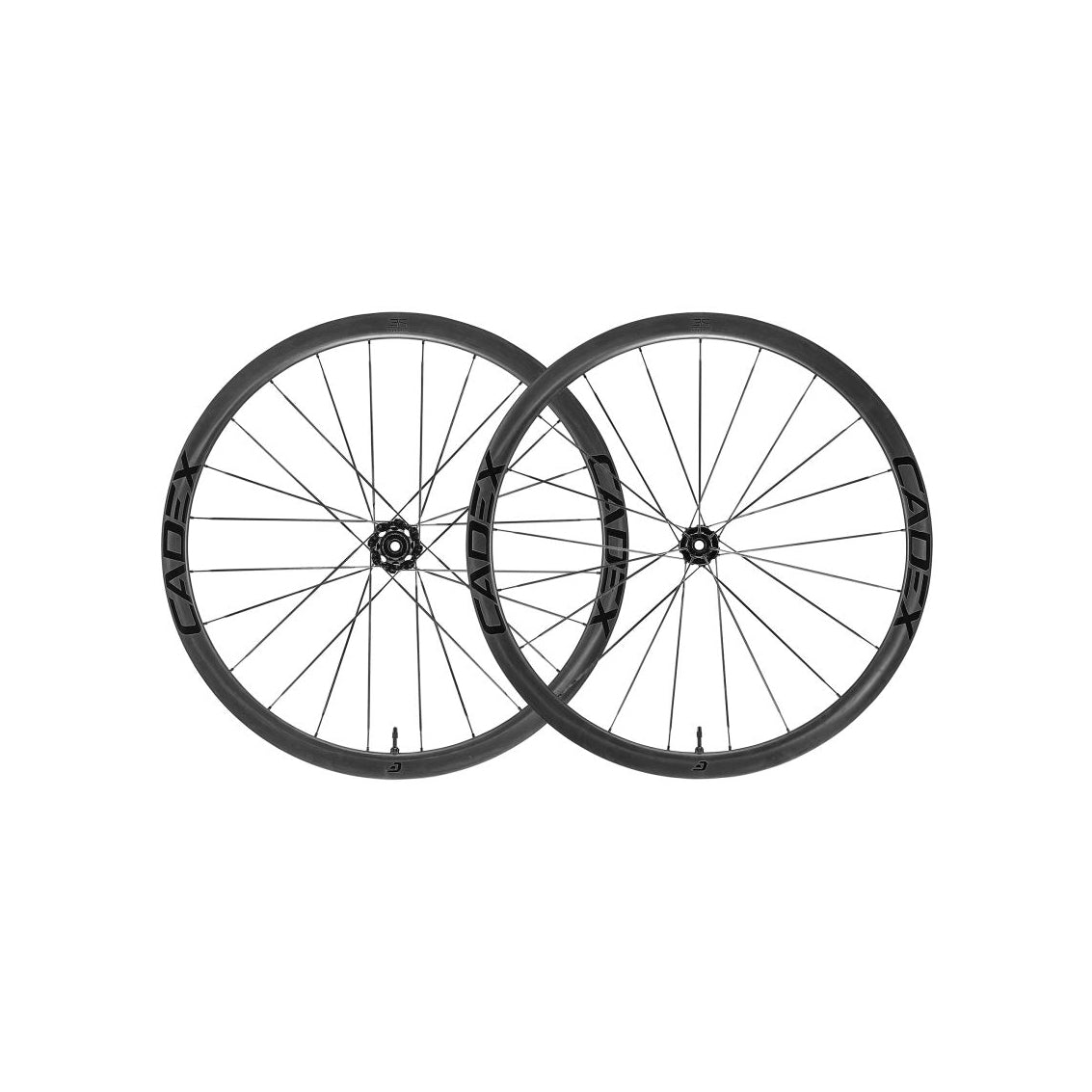

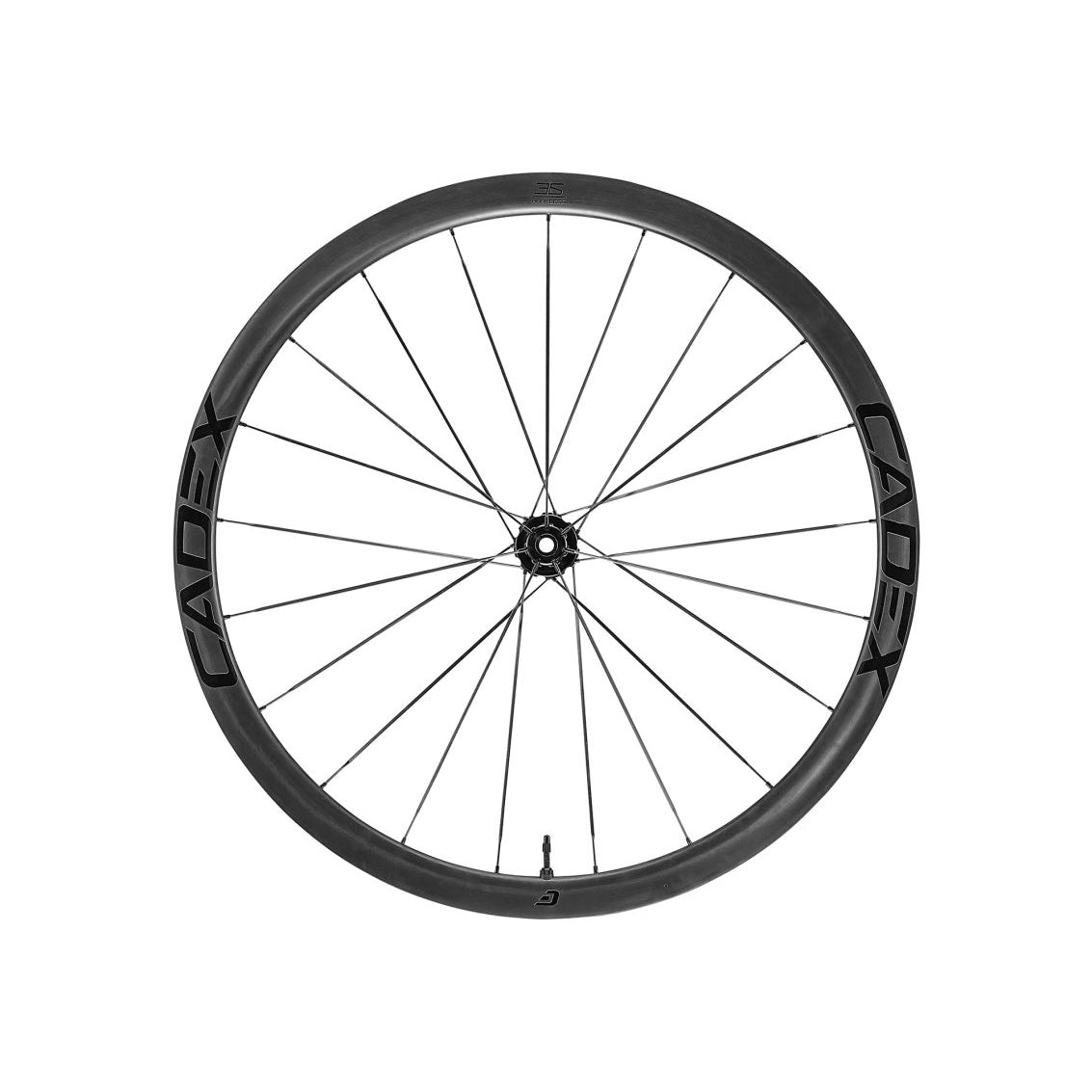

The CADEX 36 Disc WheelSystem is a versatile, lightweight composite wheel built for real-world performance. Featuring a hookless rim design with optimal 22.4mm internal width and 36mm depth, it delivers unbeatable acceleration and climbing efficiency as well as confident handling on descents, in the wind and on varied terrain.

FEATURES

  • Precision reinforced lay-up places carbon fiber only where needed, creating a strong, stiff rim structure weighing in at only 1302 grams.
  • Dynamic Balanced Lacing technology produces a stiffer, more efficient wheel with outstanding power transfer.
  • High tensile strength CADEX aero carbon spokes minimize lateral flex for more efficient acceleration and climbing.
  • The 22.4mm inner rim width creates an increased actual tire contact patch for better traction and impact absorption, better handling, more confidence and less rider fatigue.
  • CADEX hookless rim technology features a broad inner rim width and durable continuous carbon fiber structure, helping create a rounder tire shape for superior grip and handling plus added sidewall support when cornering, all without compromising weight.
  • The precision machined low-friction R1-C30 hub significantly reduces bearing load as CADEX ceramic bearings further increase efficiency by offering lower rolling resistance and 1.5x smoother action than steel.
  • A low 36mm rim profile offers excellent stability in shifting winds.

SPECIFICATIONS

Rim Material Carbon
Rim Type Hookless Clincher
Tubeless CADEX Tubeless System (rim tape and valve kit included)
Suggested Tire Size 700 x 25C – 700 x 32C
Rim Height 36mm
Rim Outer Width 26mm
Rim Inner Width 22.4mm
ETRTO 622-22
Front Hub CADEX R1-C30 Hub, Centerlock

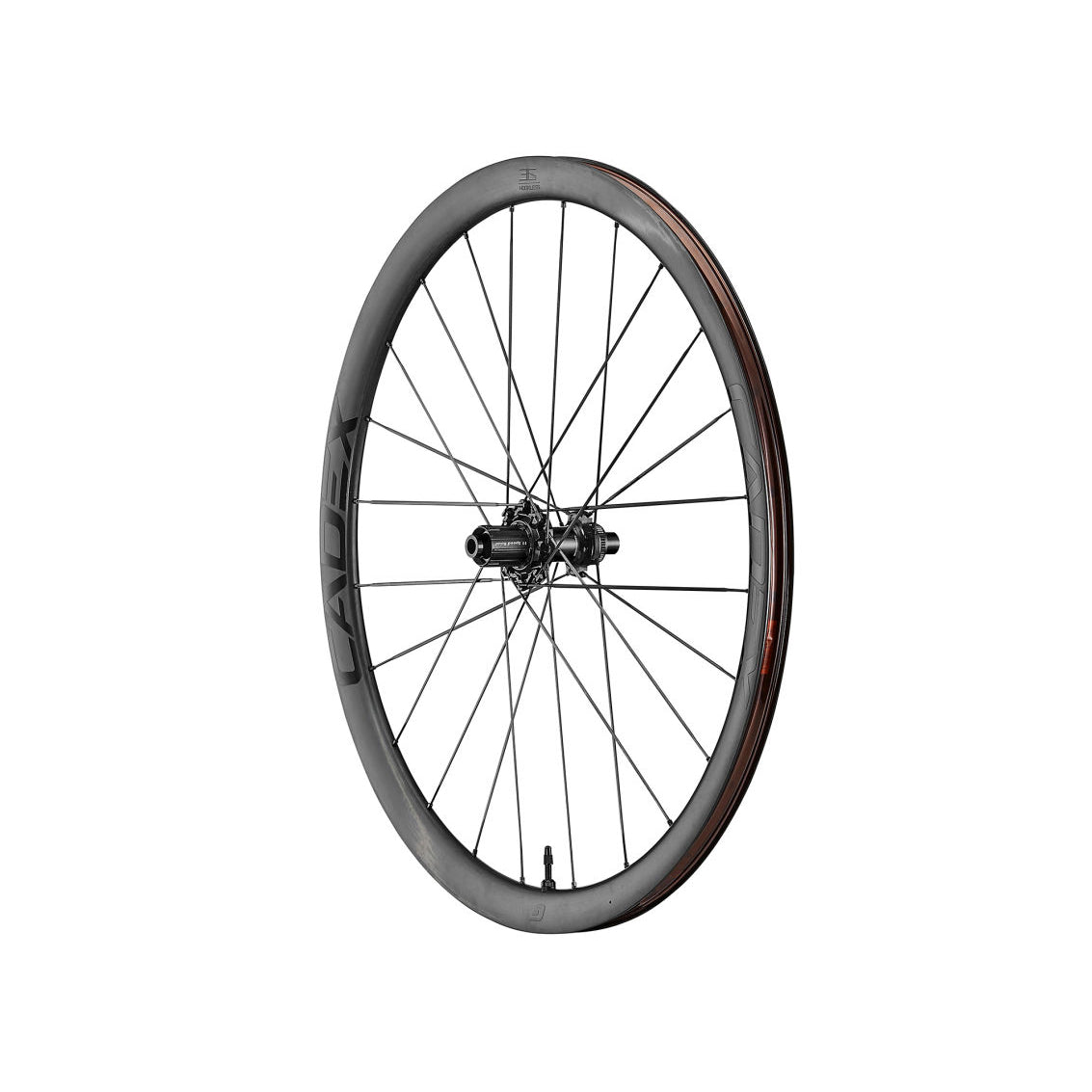

Rear Hub CADEX R1-C30 Hub, Ratchet Driver, Centerlock
Hub Compatibility Shimano 11 / SRAM XDR 12 / Campagnolo
Bearing CADEX Ceramic Bearings
Front Axle 100x12 Thru Axle
Rear Axle 142x12 Thru Axle
Spokes (Front) Aero Carbon Spoke
Lacing (Front) DBL, 21H
Spokes (Rear) Aero Carbon Spoke
Lacing (Rear) DBL, 24H
Nipple Type Alloy, Internal
Warranty 2 year warranty
Incident Replacement 5 Year (registered original owner only)
Weight (Pair) 1302g
WheelSystem Weight Limit: 285 lbs / 129 kg
